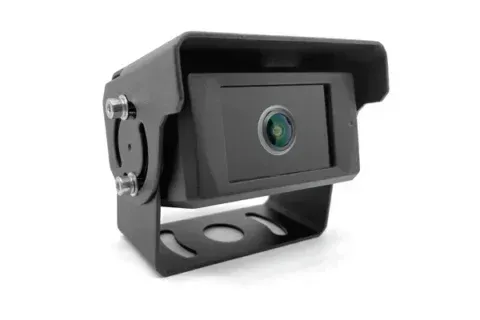

VBV-2220C AI Forward camera

VBV-2220C AI-D04 AI - Front Facing Ai camera - 7321

• 12-24Vdc
• Camera Viewing angles:
  • Horizontal 52°
  • Vertical: 30°
• AI Detection range:
  • Front: Covers Class 6 area
  • Rear: Up to 11m (dependent on camera mounting height)
• IP69K
• Camera Size (WxHxD): 97.5×75.3×72
• 2 years warranty
• High Definition AHD 1080P
• Recognises and alerts the driver to people in the front and rear blind-spot
• Detected people are shown in coloured boxes overlayed onto the camera image
• Image processing and detected-person overlay directly from the camera unit
• Plug and play: The AI camera connects directly to the Brigade monitor and/or optional internal buzzer or external alarm
• Brigade Select range connectors
• Compatible with all Brigade HD monitors and MDR recorders
• Alarm trigger output: 12V

• 260mA @12V, 140mA @24V Imaging
• Operating Voltage: 12-24V
• TV system: 25fps
• CMOS 1/2.9” 2M Pixel sensor

Durability & Standards

• Mechanical vibration: 8.5G
• Mechanical shock: 51G
• Operating temperature: -30 to +75°C
• IP30 ECU
• CE marked
• E-Marked: UNECE R10 compliant
• FCC Approved
• IC Approved
• ISO 20653:2006
• ISO 13766-1:2018

Where to Mount

• Viewing angle 129°(H), vertical 70°(V) typical installation for the rear camera. The camera installation minimum height is recommended to be 1m.
