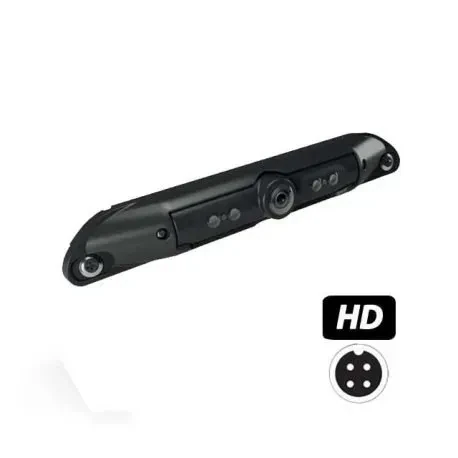

Number Plate Camera HD

Brigade Van Lite range rear number plate 720p AHD camera.

• 12 Vdc ± 10%
• CMOS 1/2.9” 1.3M Pixel
• 720P AHD
• 1 Year Warranty
• Operating Voltage: 12 Vdc ± 10%
• Current Consumption: 65±10mA w/o IR on, and 94±10mA with IR on – 130mA Max
• Imaging Device: CMOS 1/2.9” 1.3M Pixel
• TV System: BL-2130C PAL
• Picture Elements: 1080(H) x 720(V)
• Visual Resolution: 720P AHD
• Lens Focial Length: 1.98mm
• Viewing Angle: 145°(H), 80°(V), 165.6 (D)
• Assembled Weight: 300 Grams
• Video Output: Approx 1.0 Vp-p / 75Ω
• Length of Cable:
• Overall Dimensions: 68mm(W) x 42mm(D) x 215mm(L)
• Housing Material: Metal
• Camera View: Fixed – Mirror
• Finish: Black
