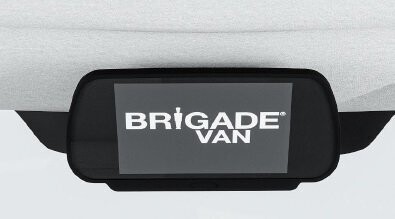

Mirror Mount HD BL-270HM

High definition mirror monitor

Clips over existing rear view mirror but also fits to traditional Fan Bracket

Technical Specifications:

• Operating Voltage: 12/36 Vdc
• Current Consumption: 300mA
• Power Consumption: 3.6W (no cameras connected)
• TV system: PAL/NTSC
• Panel size: 7 inch
• Resolution: 1024*3(RGB)*600
• Brightness: 520cd/m2
• Number of Video Inputs: 2 Camera
• Number of Triggers In: 2
• Visual Resolution Input support: 1080P/720P/CVBS
• Assembled Weight: 0.64kg
• Video Output: Approx 1.0 Vp-p / 75Ω
• Length of Cable: 50cm
• Overall Dimensions: 250.3mm(W) x 107.3mm(H) x 40.2mm(D)
• Housing Material: Plastic
• Finish: Black

Feat ures:

• LCD Panel On Screen Display Menu (OSD)

Package Contents:

• 1 x BL-270HM (7153) - Monitor
• 1 x BL-270HM-PC - Power cable
• 1 x BL-270HM-BKT - Metal bracket (fitted to back of monitor)
• Optional Extra: BMM-015 Fan Bracket (3148A)
