ECOLED III

NEW ECOLED111

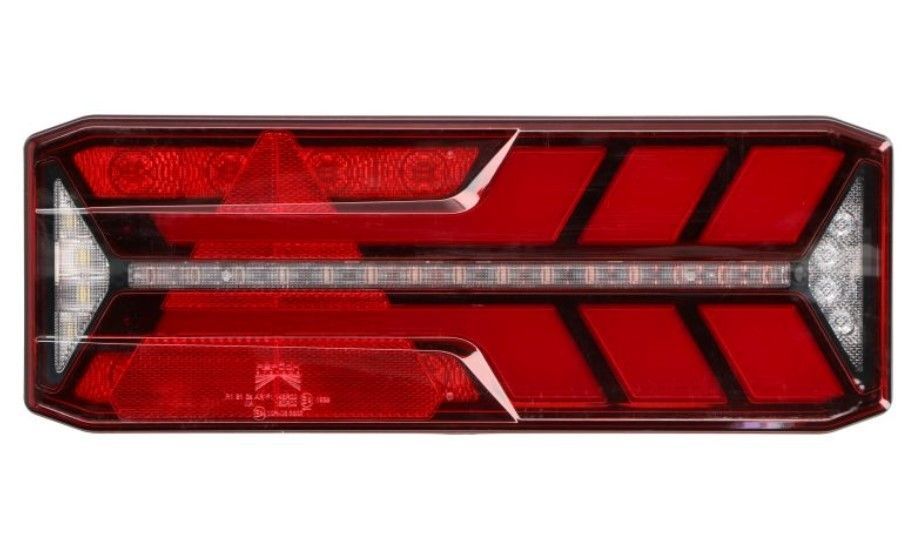

At first glance, you notice their streamlined and modern appearance. Going far beyond the usual mounting regulations, the tail light of the EcoLED III has been designed with a large homogeneous light surface with Glowing Body Technology.

The lens is chemical- and scratch-resistant and also welded. In addition, the rear lamp has been tested in the highest protection class (IP6K9K). The EcoLED III is equipped as standard with ISO pulse 13207-1 and a control for flashing side marker lamps (SMCG). The two tail lights are connected to each other with a cross-circuit.

• Innovative Glowing Body Technology as Tail Light
• Increased visibility due to large luminous area of the Tail & Stop Light functions
• Progressive Direction Indicator
• ISO pulse 13207-1 as standard (for 24 V)
• Chemical and scratch resistant lens
• SMCG (Sidemarker Control Gear) included
• (for version with 2-pin outputs) according to ECE 48, Rev. 6
• LED End Outline Marker is mounted with a mounting bracket, which has a predetermined breaking point
• Optional with 4 x 2-pin connections on the rear of the lamp (distributor function)
• Cross wiring of the tail light
• High IP protection class IP6K9K
