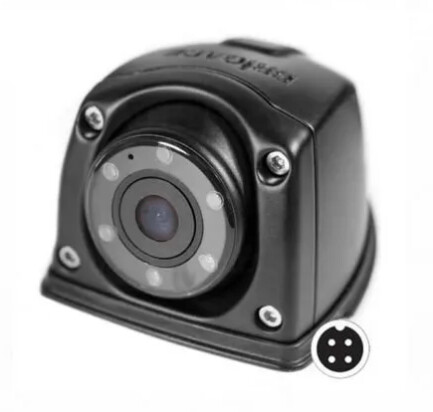

Brigade Side Camera VBV-300C, 301c, 320C & 321C

Select Camera, Compact Flush-mount Eyeball Camera

PAL Viewing angle H: 110 x V: 82 x D: 152deg

• VBV-300C - Flush-mount eyeball camera - Mirror view - 5211
• VBV-320C - Flush-mount eyeball camera - Normal view - 5215

NTSC Viewing angle H: 111 x V: 80 x D: 153deg

• VBV-301C - Flush-mount eyeball camera - Mirror view - 5213
• VBV-321C - Flush-mount eyeball camera - Normal view - 5217

Features

• IP69K
• Size W 57 x H 42 x D 70mm
• 3 Yr warranty
• 5 high power infrared LEDs for ultra-low light performance
• Day / Night sensor
• Lens swivel adjustment: 26° (Top) x 4° (Bottom) x 4° (Left) x 4° (Right)
• Lens rotation adjustment: ±180°
• Microphone
• Backlight compensation
• Automatic white balance
• 1/3" Sharp CCD
• TV System: PAL or NTSC
• TV lines: 780 PAL, 600 NTSC

• Power consumption: 2.3 Watts
• Current consumption: 0.16 Amps
• Durability & Standards
• Mechanical vibration: 8.5G
• Mechanical shock: 51G
• Operating temperature: -30 to +70°C
• CE marked
• E-Marked: UNECE R10 compliant
• FCC approved
• *Camera monitor system R46 approved VBV-300C & VBV-320C only
