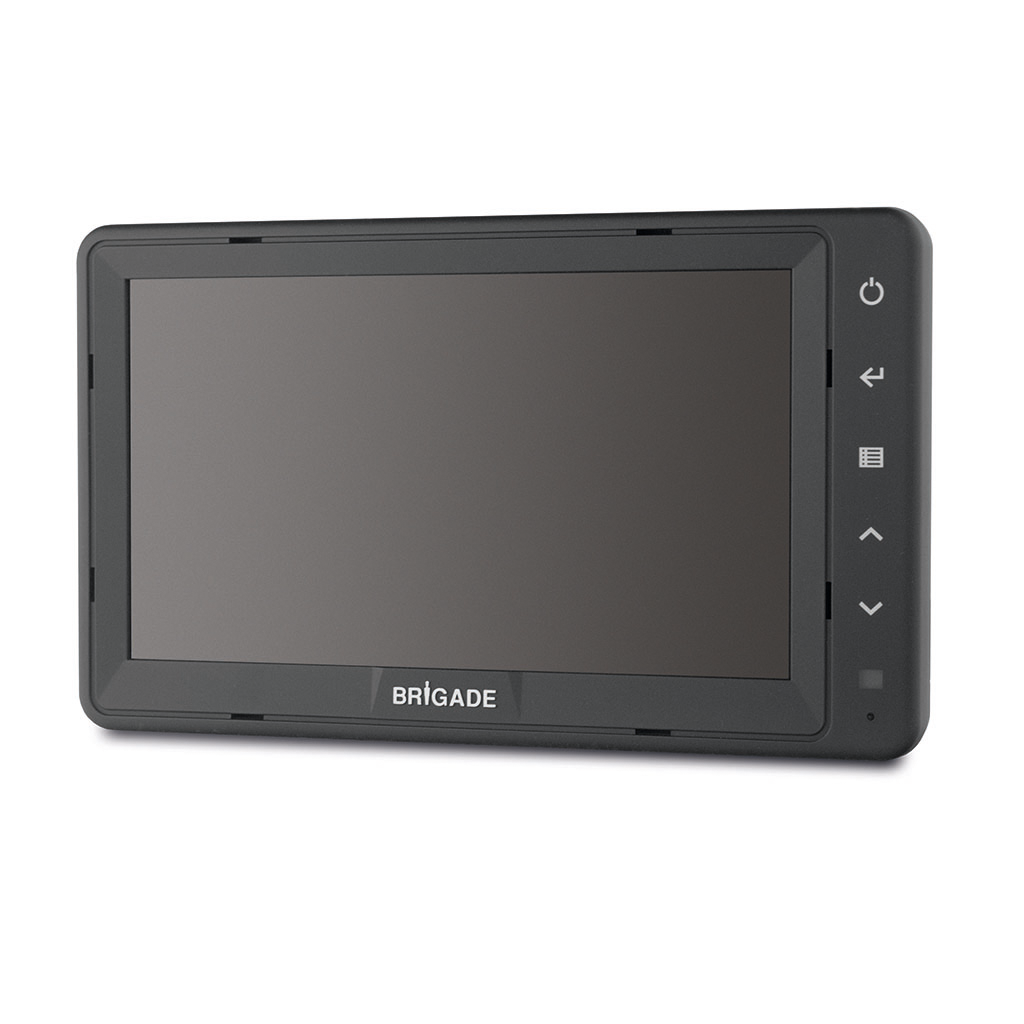

7" Split Screen VBV-770FM

Brigade VBV-770FM SELECT 7" QUAD VIEW TFT LCD CCTV Monitor 4CH R10 12/24V

Features

• 4 camera inputs
• ‘Button-lock’ anti-tamper feature
• 5 Auto-triggers
• Mirror / Normal switching from menu
• On-screen distance markers
• Audio
• Sun shield
• Multi-lingual menus
• Auto-switching PAL / NTSC
• Size: 182 x 122 x 27mm

Picture Quality

• LED backlighting (gives 20,000 hours life)
• Anti-glare screen
• Resolution: 800 x 480
• Contrast ratio: 500:1
• Brightness: 400cd/m²
• Viewing angles: Side 70° x Top 50° x Bottom 70°

Power

• Voltage Rating: 12-24Vdc
• Power consumption: 27 watts
• Current: 2.2 Amps

Durability & Standards

• Mechanical vibration: 4G
• Mechanical shock: 50G
• Operating temperature: -30 to +70°C
• CE marked
• EMC approved: E-Marked: ECE R10
• 3 year warranty
