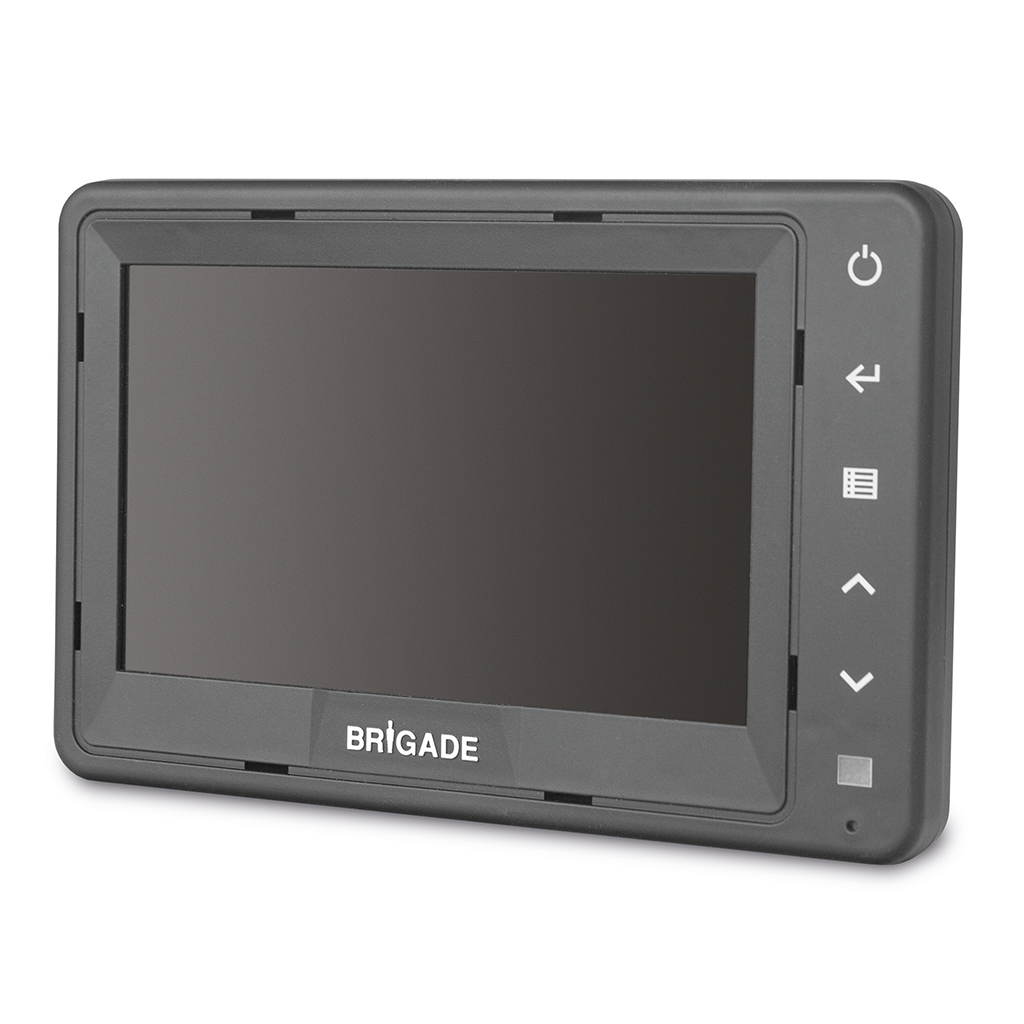

5" TFT LCD VBV-750M

Brigade VBV-750M-S SELECT 5" TFT LCD CCTV Monitor 3CH R10 12/24V

Features

• 3 camera inputs (includes 1x 5-PIN input for connection to VBV-710C shutter camera)
• 3 Auto-triggers
• Mirror / Normal switching from menu
• On-screen distance markers
• ‘Button lock’ anti-tamper feature
• Audio
• Sun shield
• Auto-dimmer
• Multi-lingual menus
• Auto-switching PAL / NTSC
• Size: 149.5 x 99 x 22mm

Picture Quality

• LED backlighting (gives 20,000 hours life)
• Anti-glare screen
• Resolution: 800 x 480
• Contrast ratio: 500:1
• Brightness: 350cd/m2
• Viewing angles: Side 70° x Top 50° x Bottom 70°

Power

• Voltage Rating: 12-24Vdc
• Power consumption: 11.5 Watts
• Current: 0.95 Amps

Durability & Standards

• Mechanical vibration: 4G
• Mechanical shock: 100G
• Operating temperature: -30 to +70°C
• CE marked
• E-Marked: ECE R10 compliant
• HALT tested
• 3 year warranty
